Active Directory 2008 : Improving the Security of Authentication in an AD DS Domain - Auditing Authentication

Account logon and logon events can be audited by Windows Server 2008 R2. The settings that manage auditing are located in a GPO in the Computer Configuration\Policies\Windows Settings\Security Settings\Local Policies\Audit Policy node. The Audit Policy node and the two settings detailed in the previous section are shown in Figure 1.

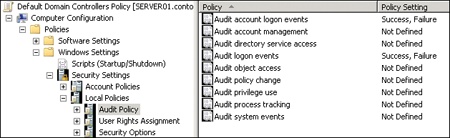

Figure 1. Authentication-related policy settings

To configure an audit policy, double-click the policy, and its properties dialog box appears. The Audit Account Logon Events Properties dialog box is shown in Figure 2.

Figure 2. The Audit Account Logon Events Properties dialog box

The policy setting can be configured to one of the following four states:

A server’s audit behavior is determined by the settings that are applied as the resultant set of policy. In Windows Server 2008 R2, the default setting is to audit successful account logon events and successful logon events. So both types of events are, if successful, entered in the server’s Security log. If you want to audit failures or turn off auditing, you must define the appropriate setting in the audit policy.

As with all policy settings, you should scope settings so that they affect the correct systems. For example, if you want to audit attempts by users to connect to remote desktop servers in your enterprise, you can configure logon event auditing in a GPO linked to the OU that contains your remote desktop servers. If, on the other hand, you want to audit logons by users to desktops in your human resources department, you can configure logon event auditing in a GPO linked to the OU containing human resources computer objects. Remember that domain users logging on to a client computer or connecting to a server will generate a logon event—not an account logon event—on that system.

Only domain controllers generate account logon events for domain users. Remember that an account logon event occurs on the domain controller that authenticates a domain user, regardless of where that user logs on. If you want to audit logons to domain accounts, you should scope account logon event auditing to affect only domain controllers. In fact, the Default Domain Controllers GPO that is created when you install your first domain controller is an ideal GPO in which to configure account logon audit policies.

Account logon and logon events, if audited, appear in the Security log of the system that generated the event. Figure 3 shows an example. So if you are auditing logons to computers in the human resources department, the events are entered in each computer’s Security log. Similarly, if you are auditing unsuccessful account logons to identify potential intrusion attempts, the events are entered in each domain controller’s Security log. This means, by default, that you will need to examine the Security logs of all domain controllers to get a complete picture of account logon events in your domain.

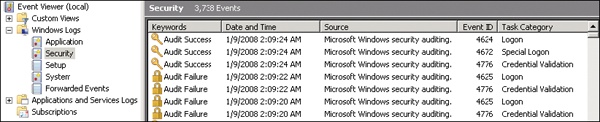

Figure 3. Authentication events in the Security log

As you can imagine, in a complex environment with multiple domain controllers and many users, auditing account logons or logons can generate a tremendous number of events. If there are too many events, it can be difficult to identify problematic events worthy of closer investigation. You should balance the amount of logging you perform with the security requirements of your business and the resources you have available to analyze logged events.
