Microsoft Dynamic AX 2009 : The Database Layer - Database Access (part 2) - Left and Right Justification , Placeholders and Literals

3. Left and Right Justification

The Dynamics AX application runtime provides support for left and right justification of fields of type string. By default, string fields are left-justified, and values are stored without modification in the database. If a string field is right-justified, however, the value is prefixed with enough blanks when inserted into the database that all available space in the field is used. When values from a right-justified field are selected from the database, the application runtime removes the blanks. The application logic doesn’t know whether a field is right-justified or left-justified because both left-justified and right-justified fields appear the same when used in the X++ application code.

When the application runtime formulates WHERE clauses in DML statements, it must determine whether fields are left-justified or right-justified because it adds extra blanks to a search value when searching for values equal to, lower than, higher than, and not equal to a field in the database. The application runtime adds extra blanks to the variable in a statement like the following when passing the statement to the database. In the following statement, assume that the accountNum field is right-justified.

select custTable where custTable.accountNum == '4000'

The statement passed to the database looks like this.

SELECT ... FROM CUSTTABLE A WHERE A.ACCOUNTNUM = '                4000'

But if the search condition contains wildcard characters, as in the following X++ select statement, the application runtime must remove the blanks from the field being searched by applying LTRIM to the statement.

select custTable where custTable.accountNum like '4%';

This code produces the expected result of selecting all custTable records where the accountNum field starts with ‘4’, and the preceding X++ statement produces a statement like the following.

SELECT ... FROM CUSTTABLE A WHERE LTRIM(A.ACCOUNTNUM) LIKE '4%'

The introduction of the LTRIM function in the WHERE clause prevents both of the supported databases from searching in an index for the value in accountNum, which could have a severe effect on the performance of the statement.

The application runtime also applies LTRIM if a right-justified field is compared with a left-justified field. In the following select statement written in X++, assume that accountNum is right-justified and accountRelation is left-justified.

select priceDiscTable
notexists join custTable
where priceDiscTable.accountRelation == custTable.accountNum

The statement passed to the database wraps the right-justified column in an LTRIM function, and it looks like this.

SELECT ... FROM PRICEDISCTABLE A
WHERE NOT EXISTS (SELECT 'x' FROM CUSTTABLE B
WHERE A.ACCOUNTRELATION=LTRIM(B.ACCOUNTNUM))

As mentioned earlier, this behavior could have a severe effect on performance, so you should decide whether this possible degradation of performance is acceptable before you change a field from left to right justification.

4. Placeholders and Literals

The database layer in the Dynamics AX application runtime formulates SQL statements containing either placeholders or literals—that is, variables or constants. Whether the application runtime chooses to use placeholders instead of literals has nothing to do with using variables or constants when the statements are formulated in either X++ or the application runtime. The following X++ select statement, which selects the minimum price for a given customer, contains constants and a variable.

select minof(amount) from priceDiscTable
where priceDiscTable.Relation        == PriceType::PriceSales &&
      priceDiscTable.AccountCode     == TableGroupAll::Table  &&
      priceDiscTable.AccountRelation == custAccount

The statement is passed to the SQL Server 2005 database when placeholders are used, as shown here.

SELECT MIN(A.AMOUNT) FROM PRICEDISCTABLE A
WHERE DATAAREAID=@P1 AND RELATION=@P2
AND ACCOUNTCODE=@P3 AND ACCOUNTRELATION=@P4

The statement is passed as follows when literals are used. Assume that the statement is executed in the ‘dat’ company and that you are searching for the lowest price for customer ‘4000’.

SELECT MIN(A.AMOUNT) FROM PRICEDISCTABLE A
WHERE DATAAREAID=N'dat' AND RELATION=4
AND ACCOUNTCODE=0 AND ACCOUNTRELATION=N'4000'

As you can see, the use of constants or variables in the formulation of the statement in X++ has no effect on the use of placeholders or literals when the SQL statement is formulated. However, using join or specific keywords in the statement when formulating the statement in X++ does have an effect.

The default behavior of Dynamics AX is to use placeholders, but if the Microsoft Dynamics AX Server Configuration Utility option Use Literals In Complex Joins From X++ is selected, statements containing joins use literals if the application runtime considers the statement to be a complex join. The application runtime determines that a join is complex if the statement contains two or more tables associated with the following table groups: Main, WorksheetHeader, WorksheetLine, Transaction, and Miscellaneous. Tables associated with the Group and Parameter table groups are not included when determining whether the join is complex.

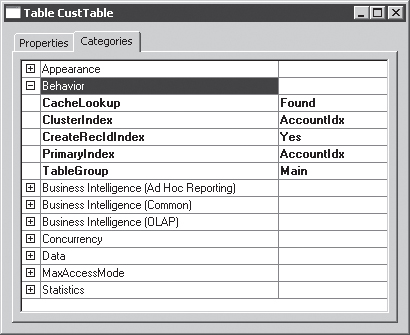

Figure 2 shows an example of the TableGroup property in the list of metadata properties for a table.

The difference between using placeholders and literals lies mainly in the ability of the database to reuse execution plans and the accuracy of the calculated execution plan. When literals are used in a statement, the query optimizer in the database knows the exact values being searched for and can therefore use its statistics more accurately; when placeholders are used, the optimizer doesn’t know the values. But because the execution plan is based on the exact values when literals are used, it can’t be reused when the same statement is passed again with different search values. Placeholders do allow reuse of the execution plan. Whether placeholders or literals result in the best performance depends on three factors:

• How often the same statement is executed with different values

• How much better the query optimizer is at calculating the optimal execution plan when the exact values are known

• The total time required to execute the actual statement

Usually, both approaches result in similar execution plans; placeholders are generally preferred because execution plans can be reused, which results in better performance overall.

You can explicitly state that a join statement should always use placeholders when the SQL statement is formulated by the application runtime, regardless of the table group settings on the tables in the statement and the Server Configuration Utility options. You do this by adding the forceplaceholders keyword to the statement in X++, as shown in the following select statement (which would use literals if the previously mentioned Server Configuration Utility option were selected).

select forceplaceholders priceDiscTable
notexists join custTable
where priceDiscTable.accountRelation == custTable.accountNum

The alternate keyword forceliterals is also available in X++. This keyword explicitly causes literals to be used when the application runtime formulates the SQL statements.
