: Windows Server 2008 and Windows Vista : Administrative (.adm) Templates (part 3) - Adding .adm Templates

- How To Install Windows Server 2012 On VirtualBox
- How To Bypass Torrent Connection Blocking By Your ISP
- How To Install Actual Facebook App On Kindle Fire
3/27/2014 3:38:42 AM

5. Adding .adm Templates

Let’s look at an example in which you need to add the Visio11.adm template to a GPO named OFFICE11. The Visio11.adm template is currently located on the desktop of the computer from which you are editing the GPO. To add the template, follow these steps after opening the OFFICE11 GPO in the GPME:

1.
Right-click the Administrative Templates node under the Computer Configuration section of the GPO, and then click Add/Remove Templates.

2.
In the Add/Remove Templates dialog box, click Add.

3.
In the Policy Templates dialog box, select Desktop in the console tree pane.

4.
Select the Visio11.adm template in the list. Click Open. You will see the Add/Remove Templates dialog box with the Visio11.adm template listed, as shown in Figure 2.

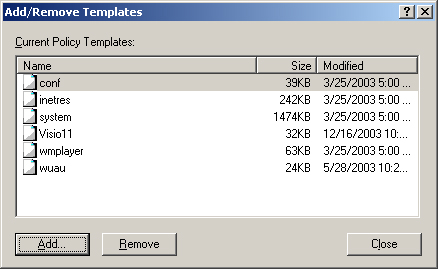

Figure 2. The Visio11.adm template appears in the Add/Remove dialog box after being added to a GPO.


After the .adm template has been imported to the GPO, you can see the Visio node and policy settings in the GPO, as shown in Figure 3.

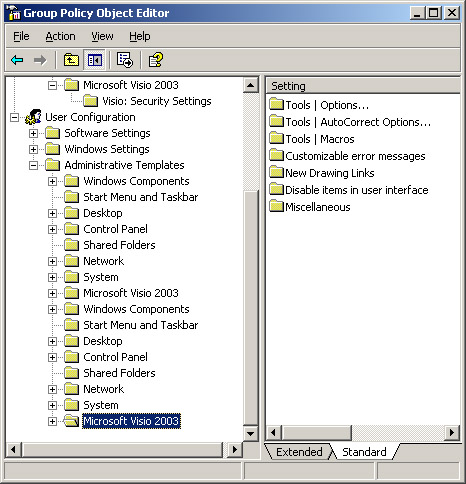

Figure 3. Policy settings for Office Visio 2003 are available after the Visio11.adm template is added to the GPO.


How It Works: ADM Templates in the Group Policy Template

By default, newly created GPOs that have not been edited will create a new Group Policy template (GPT), but without any associated .adm templates or the ADM folder in the GPT folder structure. After the GPO is edited with the GPME, the .adm templates from the %windir%\Inf folder of the computer performing the administration are copied to the GPT. These .adm templates are placed in a newly created ADM folder. When additional .adm templates are added to the GPO, they are also uploaded to the GPT and placed in the ADM folder.
