Debugging Android Applications : Eclipse Java Editor (part 1) - Java Errors

1/1/2013 5:38:27 PM
- How To Install Windows Server 2012 On VirtualBox
- How To Bypass Torrent Connection Blocking By Your ISP
- How To Install Actual Facebook App On Kindle Fire

The Android SDK takes full advantage of the features built into the Eclipse IDE, including those in the Eclipse text editor, which is customized for Java source code development. Let’s use a simple application as an example of some of that editor’s features. If you’re already an expert on using Eclipse for Java development, you can skip this section. If you’re new to Eclipse (or new to Java), there are some hints here that will speed up your development of Android applications.

1. Java Errors

We’ve created a new Android project called DebugTest, using Eclipse and the Android SDK (File → New → Project → Android Project). When you do that, and open the Java source file the SDK created for you, you get a central pane that looks like Figure 1. This is the Eclipse Java text editor, and it is already doing its job to point out errors in the nascent application.

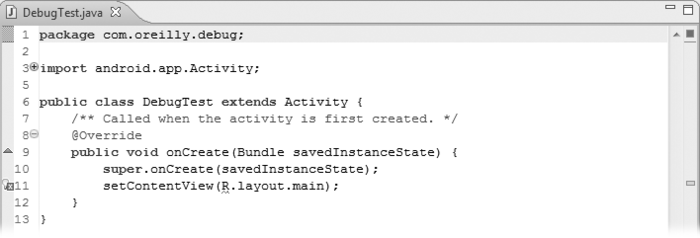

Figure 1. Eclipse debug window upon startup


In this case, the error indication is in the left margin: the little lightbulb and red X on line 11. Within that line, the editor has underlined the R in R.layout.main to tell you specifically where there’s a problem. Editors in Eclipse are smart enough to understand the syntax of the language they are editing, and in this case, the error flag is telling us there’s a problem with this part of the code. If we use the mouse to hover over the R, we get a pop up that gives us more information, as shown in Figure 2. If you hover your mouse over the symbols in the left margin, you get the same pop up.

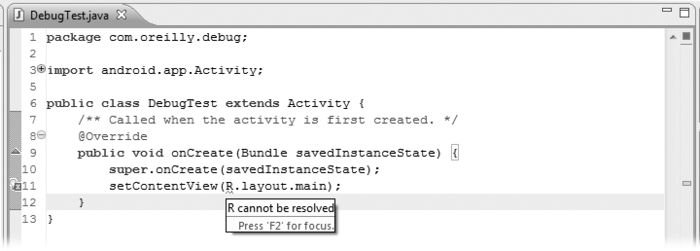

Figure 2. Eclipse error detail


Notice also that there’s a little red indicator in the upper-right area of the pane, indicating there is an error somewhere in this file, and a little red open rectangle in the right margin. If this file were big enough to need the vertical scroll bar, you could easily see the locations of the errors in the file, and you could scroll to them by dragging the scroll segment to the red rectangle. Eclipse makes it very easy to see where it has found errors in your code.

A quick check of the Package Explorer pane shows that there’s no R.java file. Of course not! It doesn’t exist, because we haven’t built the project yet, and that’s why resources under R can’t be resolved. After we build DebugTest (Project → Build All), the error goes away (both the red underline and the symbols in the margin).

So let’s add some code for a simple application and see some of Eclipse’s debug features. We’ll edit DebugTest.java and main.xml to add a label, a text box, a WebView (we want some Internet action to give us more to look at), and a button. The application will be a trivial browser, with the box being the URL and the button being the trigger to go load the URL into the WebView. We’ll throw in some intentional errors to see how Eclipse handles them.

Our altered main.xml file now looks like this:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="Enter URL:"
    />
<EditText
    android:id="@+id/URL"
    android:layout_width="fill_parent"
    android:layout_height="60.0dip"
    android:maxLines="1"

<Button
    android:id="@+id/btnGo"
    android:layout_width="wrap_content"
    android:layout_height="60.0dip"
    android:text="Go"
    />
<WebView
    android:id="@+id/wvBrowser"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    />
<LinearLayout>




and DebugTest.java looks like this:

package com.oreilly.debug;

import android.app.Activity;
import android.os.Bundle;

public class DebugTest extends Activity {
    private EditText txtURL;
    private Button btnGo;
    private WebView wvBrowser;

    // Set up an onClick routine to gather URLs entered by the user
    private final Button.OnClickListener btnGoOnClick = new Button.OnClickListener() {
        public void onClick(View v) {
            try {
                wvBrowser.loadURL();
            }
            catch (Exception e) {}
        }
    };

    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // Find the Views in the layout file
        txtURL = (EditText) findViewById(R.id.txtURL);
        btnGo = (Button) findViewById(R.id.btnGo);
        btnGo.setOnClickListener(btnGoOnClick);
        wvBrowser = (WebView) findViewById(R.id.wvBrowser);
    }
}



If you type in these lines (instead of copying and pasting), you’ll see that the editor tries to anticipate what you might type given the context of where you are in the code. As you type “wvBrowser.”, for example (including the final dot), the editor knows that wvBrowser is a WebView, so it gives you a list of methods and variables that WebViews have. This is a great feature that really helps cut down on mistyped method and variable names. Once you’ve typed or selected the method, the editor shows you the parameters for that method, so you don’t have to look those up either.

Since we need to access the Internet to get web pages, we ask for that permission in AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
      package="com.oreilly.debug"
      android:versionCode="1"
      android:versionName="1.0.0">
    <application android:icon="@drawable/icon" android:label="@string/app_name">
        <activity android:name=".DebugTest"
                  android:label="@string/app_name">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
<uses-permission android:name="android.permission.INTERNET"></uses-permission>
</manifest>



Looking at main.xml in the Eclipse editor pane (now an XML editor, but with many of the same features we saw in the Java editor), we see some errors (Figure 3).

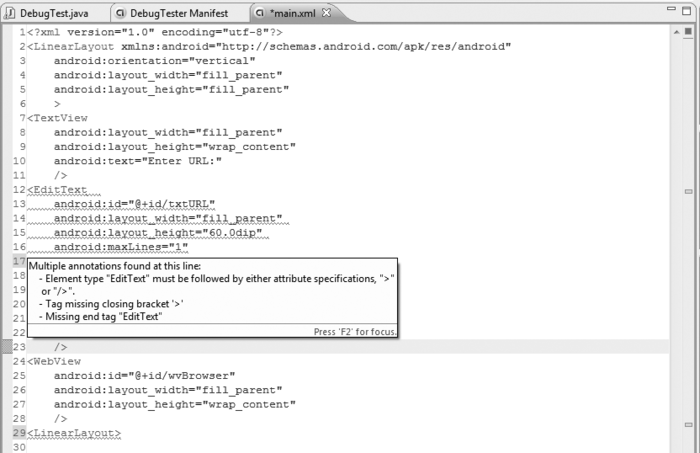

Figure 3. main.xml in Eclipse


A quick inspection confirms what the editor is telling us—that there’s no close tag for the EditText. We type /> into line 17, and the red underlines immediately go away. Now that the EditText tag is fixed, we’re left with one more error, shown in Figure 4.

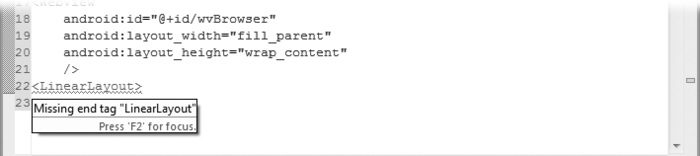

Figure 4. Additional main.xml error


It says we’re missing the end tag for LinearLayout, but we’re really missing the slash that should start the end tag </LinearLayout>. From the editor’s syntactical point of view, it knows only that it expected to find a </LinearLayout> before the next <LinearLayout> tag or the end of the file, and it didn’t find one. The error message is enough to cause us to look in the right place and figure out what is really wrong.

Now that we have main.xml fixed up, let’s look at the first part of DebugTest.java as it appears in Eclipse (Figure 5). We can see from the right scroll margin that there are a total of seven errors, and our mouse is hovering over the error in the declaration of btnGo.

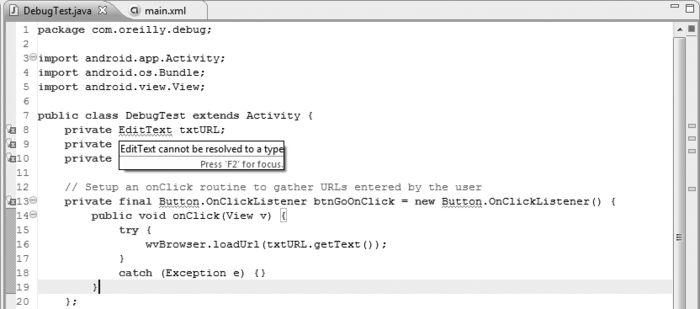

Figure 5. DebugTest.java with errors, screen 1


Now for one of my favorite features of Eclipse. The source of the error displayed in Figure 5-5, it turns out, is that EditText can’t be resolved in the example, because we haven’t imported the package that defines EditTexts. You could go look in the Android documentation and find the right name for the library, but Eclipse has a labor-saving feature that will find it for you. Just type Ctrl-Shift-O (that’s the letter O) while the editor has focus, and Eclipse will attempt to resolve all the unresolved references in the file by finding appropriate libraries. With that one stroke, the appropriate packages get imported for EditText, Button, and WebView (you can’t see them in Figure 5-5, because they’re hidden by the pop up), and those errors disappear from the editing pane as well.

That leaves us with five more errors, so we scroll down as shown in the Eclipse screenshot in Figure 6.

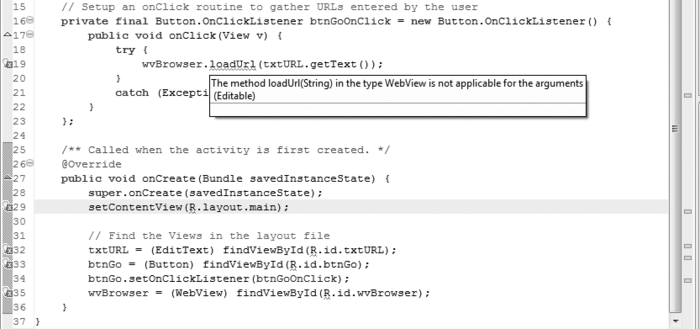

Figure 6. DebugTest.java with errors, screen 2


The four errors in lines 29, 32, 33, and 35 have the same source as the one in Figure 5-2 and will go away the first time we build the project with the new main.xml. Let’s fix the remaining error using Eclipse’s help.

We currently have the mouse hovering over the error in line 19, and the pop up says we’re trying to pass an Editable instead of a String to the loadURL(String) method. That’s easy to fix: Editables have a toString method, like most objects, so we can change onClick to look like this:

public void onClick(View v) {
    try {
        wvBrowser.loadUrl(txtURL.getText().toString());
    }
    catch (Exception e) {}
}

Now we try to build and run the project (Run → Run → Android Application), but Eclipse tells us we still have errors. It helpfully lists all the problems found in the Problems tab, located in the pane at the bottom of the Eclipse window. Figure 7 shows that tab.

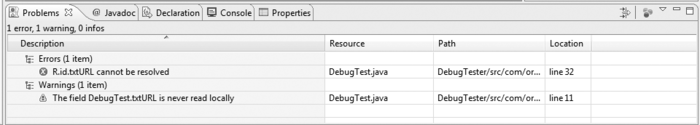

Figure 7. DebugTest compile problems


Clicking on an error in the Problems tab takes us directly to the corresponding line of source code in the Editing pane for DebugTest.java. A quick look at main.xml reveals the problem: we referred to the text box as URL in main.xml, and tried to find it as txtURL in the Java code. A quick fix to main.xml, and the compile completes.

Eclipse starts the Android emulator for us and loads our application so it appears on the screen. The application runs—now to see whether it produces correct results.

If you type in a URL like www.oreilly.com and click the Go button, you get...an error. Instead of the web page you asked for, you see a page that says “Web Page not Available.” Let’s try http://www.oreilly.com...ah, that works. So let’s add code that checks whether the URL starts with http://, and if not, adds it:

public void onClick(View v) {
    try {
        String sURL = txtURL.getText().toString();
        if(sURL.substring(0,6).equals("http://")) {
            wvBrowser.loadUrl(sURL);
        }else{
            sURL = "http://" + sURL;
            wvBrowser.loadUrl(sURL);
        }
    }
    catch (Exception e) {}
}

Now when we run the program using www.oreilly.com as the URL, it works—but http://www.oreilly.com doesn’t! Let’s use the debugger to figure out why.
