2. The Debugger

The Android SDK makes the use of the Eclipse debugger completely transparent, so let’s use it to see what’s going wrong with our program. We’ll put a breakpoint at the line we just entered, so the debugger will break there when we run the program. Eclipse gives us three ways to toggle a breakpoint:

  • Use the menus. Select the line you want to toggle and choose Run → Toggle Breakpoint.

  • Use the keyboard. Select the line you want to toggle and key Ctrl-Shift-B.

  • Double-click in the left margin of the editor window at the line you want to toggle (my favorite method).

Whatever way you choose, you end up with a breakpoint mark in the left margin of the editor window, as shown in Figure 8.

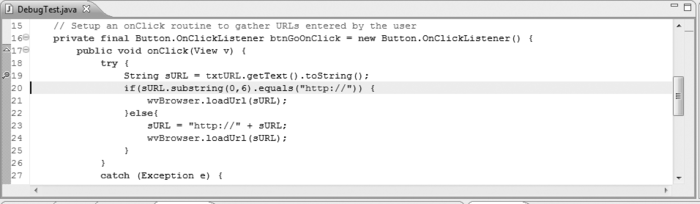

Figure 8. Editor pane showing breakpoint


To invoke the Debugger, choose Run → Debug → Android Application from the Eclipse menu. Eclipse and the Android SDK do what they did before (build the program if necessary, convert to Dalvik, invoke the emulator, load your program, and start it running). You may get a window in the Emulator that says “Waiting for Debugger: Application DebugTest is waiting for the Debugger to connect.” If you do, just wait a few seconds and the Debugger should finish initializing, the window will disappear, and you’ll see the DebugTest screen.

Now enter http://www.oreilly.com and click the Go button. DebugTest starts executing and breaks at the breakpoint. Eclipse automatically changes to the Debug Perspective, showing you panes that apply to debugging your application. Starting from the upper left and moving down the window, left to right, these are:


Debug

The Debug pane has a single tab (Debug) that shows a trace of recent execution. It should show that you are at a breakpoint in a Dalvik thread running DebugTest, at Java line 19. In its toolbar, this pane also contains the buttons for Resume, Suspend, Terminate, Step Into, Step Over, Step Return, etc.


Variables and Breakpoints

This pane has two tabs, the most useful of which is Variables, where you can see the current value of variables that are in scope. So far it’s showing values for this and v.


Editor

This contains a tab for each of the source files that you had open in the Java Perspective. The currently displayed tab should show DebugTest.java, highlighting the current breakpoint (line 19).


Outline

This shows the structure of your application. DebugTest is simple, so it shows only one method, OnCreate.


Console/Tasks/Properties

This pane has tabs for each of these views, which don’t contain much that’s interesting at the moment. The Console is the most useful, and in some debug situations can have important information telling you what is (or isn’t) happening.


Logcat

This is the subject of the next section: the contents of the Android logcat log, with buttons to filter the content.

Focusing on the Editor pane, which shows us stopped at line 19, let’s use the Step Over button (in the Debug toolbar in the pane above) to step the program one line, to line 20. Now sURL appears in the Variables Pane, and it has the right value, http://www.oreilly.com. Step once more and you can tell something’s wrong: we expected the program to take the first branch of the if, and it took the second instead. That’s why http:// is appearing twice in the URL string. If we step once more we can see that, as the value of sURL changes in the Variables Pane.

To find out why, let’s use another debug feature of Eclipse. From the menu, choose Window → Show View → Display. A new Display tab is added to the lower-left pane, and comes to the front. As long as the Debugger is running, you can type any variable or expression that’s in scope into this window to display the variable’s value or execute the expression. We should be curious about the expression we’re comparing the user’s URL to, sURL.substring(0,6). So cut and paste this method call from the Editor pane into the Display tab, select the expression, right-click, and choose Display from the pop-up menu. Eclipse evaluates the expression and displays the result in the pane—and what do you know, it’s http:/, with the last / missing, as shown in Figure 9. This problem may be typical of errors that programmers encounter with the use of Java’s substring method, because its second parameter represents the location of the last character, not the count of characters, as in some other languages. We change the 6 to 7, and the program works fine.

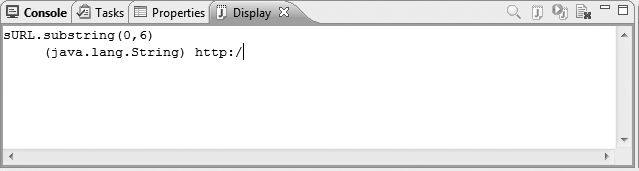

Figure 9. Eclipse debugger display pane
