In addition to the accelerometer, the iPhone 3GS has a magnetometer that acts as a digital compass. Combining the heading (yaw) information (see Figure 1) returned by this device with the roll and pitch information returned by the accelerometer will let you determine the true orientation of the iPhone in real time.

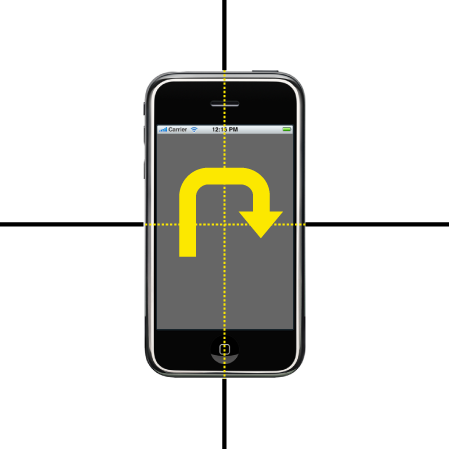

Figure 1. Using the magnetometer (a.k.a. the digital compass) in the iPhone 3GS, you can determine the heading (yaw) of the device


You should be aware that the magnetometer is measuring the strength of the magnetic field surrounding the device. In the absence of any strong local fields, these measurements will be of Earth’s ambient magnetic field, allowing the device to determine its “heading” with respect to the geomagnetic North Pole. The geomagnetic heading and true heading, relative to the geographical North Pole, can vary widely (by several tens of degrees depending on your location).

As well as reporting the current location, the CLLocationManager class can, in the case where the device’s hardware supports it, report the current heading of the device. The following code will create an instance of the class, and will send both location and heading update messages to the designated delegate class:

CLLocationManager *locationManager = [[CLLocationManager alloc] init];
locationManager.delegate = self;
if( locationManager.locationServicesEnabled &&
        locationManager.headingAvailable)
{
  [locationManager startUpdatingLocation];
  [locationManager startUpdatingHeading];
} else {
   NSLog(@"Can't report heading");
}

We can filter these update messages based on an angular filter. Changes in heading of less than this amount will not generate an update message to the delegate:

locationManager.headingFilter = 5;  // 5 degrees

The default value of this property is kCLHeadingFilterNone. Use this value if you want to be notified of all heading updates.

The CLLocationManagerDelegate protocol offers a method that is called when the heading is updated:

- (void)locationManager:(CLLocationManager*)manager
  didUpdateHeading:(CLHeading*)newHeading
{
   // If the accuracy is valid, process the event.
   if (newHeading.headingAccuracy > 0)
   {
      CLLocationDirection theHeading = newHeading.magneticHeading;

      // Do something with the event data.
   }
}

If location updates are also enabled, the location manager returns both true heading and magnetic heading values. If location updates are not enabled, the location manager returns only the magnetic heading value:

CLLocationDirection trueHeading = newHeading.trueHeading;

As I mentioned previously, the magnetometer readings will be affected by local magnetic fields, so the CLLocationManager will attempt to calibrate its heading readings by displaying a heading calibration panel before it starts to issue update messages. However, before it does so, it will call the locationManagerShouldDisplayHeadingCalibration: delegate method:

- (BOOL)locationManagerShouldDisplayHeadingCalibration:
  (CLLocationManager *)manager {
    ... code not shown ...
}

If you return YES from this method, the CLLocationManager will proceed to display the device calibration panel on top of the current window. The calibration panel prompts the user to move the device in a figure-eight pattern so that Core Location can distinguish between Earth’s magnetic field and any local magnetic fields. The panel will remain visible until calibration is complete or until you dismiss it by calling the dismissHeadingCalibrationDisplay: method in the CLLocationManager class.
