iphone Programming : Using Sensors - Accessing the Proximity Sensor

1/8/2013 11:22:53 AM
- How To Install Windows Server 2012 On VirtualBox
- How To Bypass Torrent Connection Blocking By Your ISP
- How To Install Actual Facebook App On Kindle Fire

The proximity and ambient light sensors are two separate sensors. The ambient light sensor is used to change the brightness level of the device’s screen automatically, while the proximity sensor is used by the device to turn the screen off when you put the phone to your ear to make a call. Although it does have an ambient light sensor, the iPod touch does not have a proximity sensor.

Unfortunately, there is no way to access the ambient light sensor in the official SDK. However, developers can access the proximity sensor via the UIDevice class. This sensor is an infrared LED emitter/detector pair positioned near the earpiece, as shown in Figure 1. It measures the return reflection of the transmitted infrared beam to detect (large) objects near the phone.

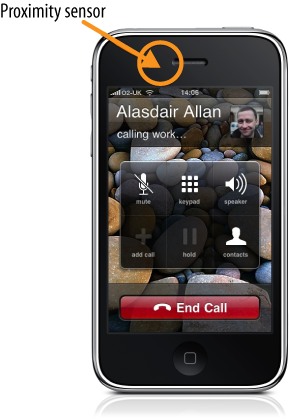

Figure 1. The IR LED of the proximity sensor is located near the earpiece


You can enable the sensor in your application by toggling the proximityMonitoringEnabled Boolean:

UIDevice *device = [UIDevice currentDevice];
device.proximityMonitoringEnabled = YES;

You can query whether the proximity sensor is close to the user:

BOOL state = device.proximityState;

If proximity monitoring is enabled, a UIDeviceProximityStateDidChangeNotification notification will be posted by the UIDevice when the state of the proximity sensor changes; you can ask that your application is notified when this occurs by registering your class as an observer with the notification center:

[[NSNotificationCenter defaultCenter]
  addObserver:self selector:@selector(proximityChanged:)
  name:@"UIDeviceProximityStateDidChangeNotification" object:nil];

Notifications would then get received by the proximityChanged: method:

- (void) proximityChanged: (NSNotification *)note {
   UIDevice *device = [note object];
   NSLog(@"In proximity: %i", device.proximityState);
}
